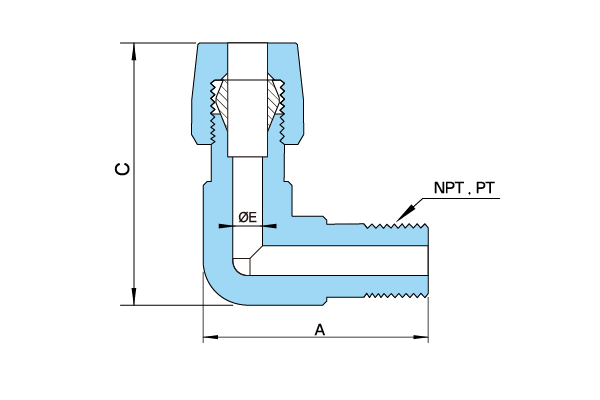

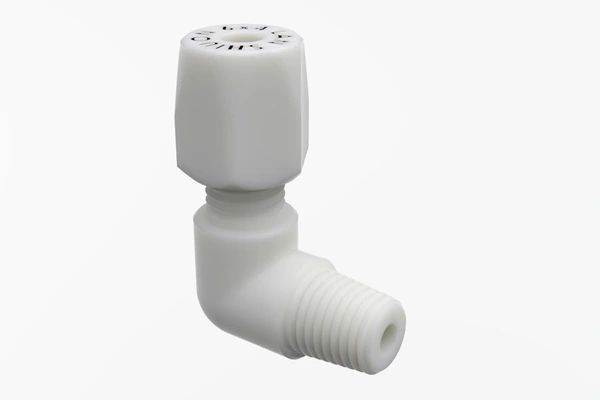

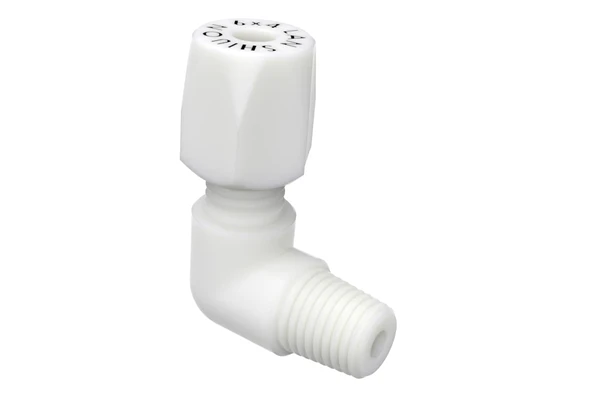

L-TYPE MALE CONNECTOR
Material : TFM
| Mm Tube type |
| NO. |
OD×ID |
(A) |
(C) |
ØE1 |
NPT,PT |
| L–WY110 |
3×2 |
22.8 |
22.8 |
2.1 |
1/8" |
| L–WY111 |
4×3 |
22.7 |
22.7 |
3.1 |
1/8" |
| L–WY112 |
6×4 |
30 |
30 |
4.4 |
1/4" |
| L–WY113 |
8×6 |
35.9 |
35.9 |
6.5 |
3/8" |
| L–WY114 |
10×8 |
38.2 |
38.2 |
8 |
3/8" |
| L–WY115 |
12×10 |
47 |
47 |
10 |
1/2" |
| L–WY116 |
19×15.8 |
60.4 |
60.4 |
16 |
3/4" |
| L–WY117 |
25×22 |
69 |
69 |
22.2 |
1" |
| Inch Tube type |
| NO. |
OD×ID |
(A) |
(C) |
ØE1 |
NPT,PT |
| L–WY118 |
1/8"×0.086" |
22.8 |
25.8 |
2.1 |
1/8" |
| L–WY119 |
1/4"×5/32" |
30 |
33 |
4.4 |
1/4" |
| L–WY120 |
3/8"×1/4" |
38.2 |
42.2 |
8 |
3/8" |
| L–WY121 |
1/2"×3/8" |
47 |
52 |
10 |
1/2" |
| L–WY122 |
3/4"×5/8" |
60.4 |
66.4 |
16 |
3/4" |
| L–WY123 |
1"×7/8" |
69 |
77 |
22.2 |
1" |
