| Mm Tube type | ||||||
|---|---|---|---|---|---|---|

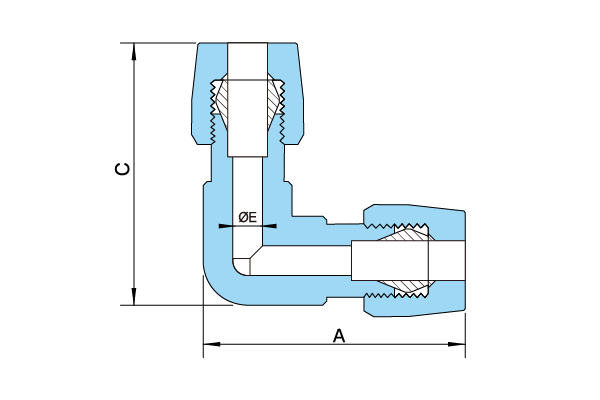

| NO. | OD×ID | (A) | (C) | ØE | ||
| L-WY010 | 3×2 | 22.8 | 22.8 | 2.1 | ||
| L-WY011 | 4×3 | 22.7 | 22.7 | 3.1 | ||
| L-WY012 | 6×4 | 30 | 30 | 4.4 | ||
| L-WY013 | 8×6 | 35.9 | 35.9 | 6.5 | ||
| L-WY014 | 10×8 | 38.2 | 38.2 | 8 | ||
| L-WY015 | 12×10 | 47 | 47 | 10 | ||
| L-WY016 | 19×15.8 | 60.4 | 60.4 | 16 | ||
| L-WY017 | 25×22 | 69 | 69 | 22.2 | ||
| Inch Tube type | ||||
|---|---|---|---|---|

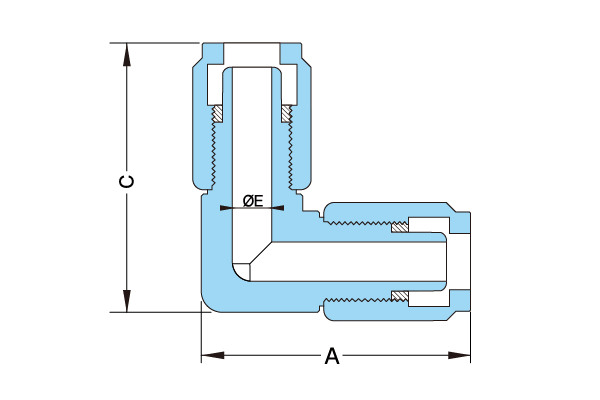

| NO. | OD×ID | (A) | (C) | ØE |
| L-WY018 | 1/8"×0.086" | 22.8 | 22.8 | 2.1 |
| L-WY019 | 1/4"×5/32" | 30 | 30 | 4.4 |
| L-WY020 | 3/8"×1/4" | 38.2 | 38.2 | 8 |
| L-WY021 | 1/2"×3/8" | 47 | 47 | 10 |
| L-WY022 | 3/4"×5/8" | 60.4 | 60.4 | 16 |
| L-WY023 | 1"×7/8" | 69 | 69 | 22.2 |
