PFA 變徑直通接頭
Material : PFA
P·RE-TYPE PFA Reducing Union Fitting
擴口式、入珠式

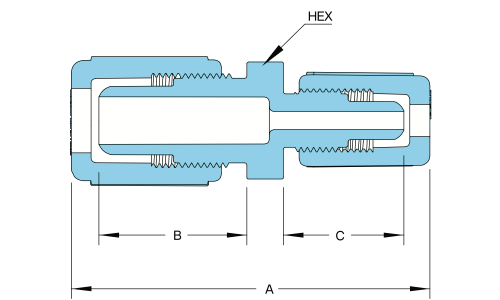

尺寸規格表
| PFA Flare-Type Reducing Union Fitting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||
| NO. | Tube O.D. | Tube O.D. | Orifice | A | B | C | HEX | ||
| P·RE-WY525 | 3/8" | 1/4" | 3 | 69 | 26 | 24 | 17 | ||
| P·RE-WY526 | 1/2" | 1/4" | 3 | 73 | 30 | 24 | 23 | ||
| P·RE-WY527 | 1/2" | 3/8" | 6 | 73 | 30 | 26 | 23 | ||
| P·RE-WY528 | 3/4" | 1/4" | 3 | 76 | 32 | 24 | 30 | ||
| P·RE-WY529 | 3/4" | 3/8" | 6 | 70 | 32 | 26 | 26 | ||
| P·RE-WY530 | 3/4" | 1/2" | 9 | 80 | 30 | 32 | 30 | ||
| P·RE-WY531 | 1" | 1/4" | 3 | 81 | 24 | 36 | 36 | ||
| P·RE-WY532 | 1" | 3/8" | 6 | 85 | 36 | 26 | 36 | ||
| P·RE-WY533 | 1" | 1/2" | 9 | 89 | 37 | 30 | 36 | ||
| P·RE-WY534 | 1" | 3/4" | 16 | 90 | 36 | 32 | 36 | ||
| P·RE-WY535 | 1-1/4" | 1" | 22 | 110 | 44 | 38 | 44 | ||
| P·RE-WY536 | 1-1/2" | 1" | 22 | 144 | 55 | 38 | 61 | ||
| P·RE-WY537 | 1-1/2" | 1-1/4" | 28 | 155 | 55 | 47 | 61 | ||

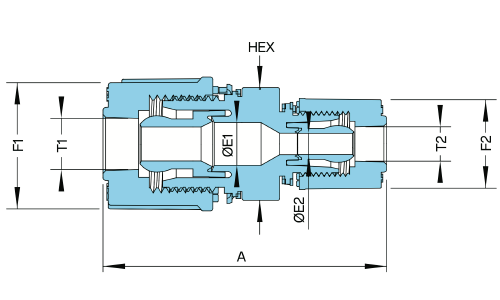

尺寸規格表
| PFA Insert-Type Reducing Union Fitting | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||||||
| NO. | Tube O.D.T1 | Tube O.D.T2 | A | F1 | F2 | HEX | ØE1 | ØE2 | T1 | T2 | ||
| P·RE-WY538 | 4mm | 1/8" | 36 | 12 | 12 | 12 | 2 | 2 | 4 | 3 | ||
| P·RE-WY539 | 1/4" | 4mm | 40 | 15 | 12 | 15 | 4 | 3 | 6 | 4 | ||
| P·RE-WY540 | 1/4" | 1/8" | 40 | 15 | 12 | 15 | 4 | 2 | 6 | 3 | ||
| P·RE-WY541 | 3/8" | 1/4" | 53 | 22 | 15 | 21 | 8 | 4 | 9 | 6 | ||
| P·RE-WY542 | 1/2" | 1/4" | 60 | 27 | 15 | 25 | 10 | 4 | 12 | 6 | ||
| P·RE-WY543 | 1/2" | 3/8" | 64 | 27 | 22 | 25 | 10 | 8 | 12 | 9 | ||
| P·RE-WY544 | 3/4" | 3/8" | 72 | 37 | 22 | 33 | 16 | 8 | 19 | 9 | ||
| P·RE-WY545 | 3/4" | 1/2" | 77 | 37 | 27 | 33 | 16 | 10 | 19 | 12 | ||
| P·RE-WY546 | 1" | 3/8" | 83 | 47 | 22 | 43 | 22 | 8 | 25 | 9 | ||
| P·RE-WY547 | 1" | 1/2" | 92 | 47 | 27 | 43 | 22 | 10 | 25 | 12 | ||
| P·RE-WY548 | 1" | 3/4" | 90 | 47 | 37 | 43 | 22 | 16 | 25 | 19 | ||
產品特性
- 抗化學腐蝕性佳，耐氫氟酸、硫酸、硝酸等強酸環境。
- 耐高溫，使用範圍 -18°C 至 200°C，1-1/2" 以上規格建議低於 150℃ 使用。
- 低析出、低吸附性，適用於超純水與高潔淨需求。
- 表面光滑無死角，有效減少液體殘留與污染風險。
- 熱熔焊接設計，接合處穩定牢固，密封性佳。
壓力/溫度關係表
