PFA 變徑彎接頭
Material : PFA
P·RL-TYPE PFA Reducing Elbow Union Fitting
擴口式、入珠式

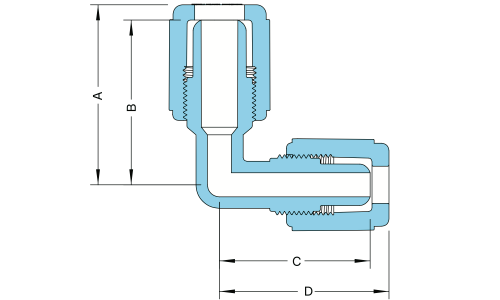

尺寸規格表
| PFA Flare-Type Reducing Elbow Union Fitting | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||||||
| NO. | Tube O.D. | Tube O.D. | Orifice | A | B | C | D | ||||||
| P·RL-WY628 | 3/8" | 1/4" | 3 | 45 | 39 | 37 | 42 | ||||||
| P·RL-WY629 | 1/2" | 1/4" | 3 | 47 | 41 | 37 | 42 | ||||||
| P·RL-WY630 | 1/2" | 3/8" | 6 | 47 | 39 | 39 | 45 | ||||||
| P·RL-WY631 | 3/4" | 1/4" | 3 | 58 | 50 | 37 | 42 | ||||||
| P·RL-WY632 | 3/4" | 3/8" | 6 | 58 | 50 | 39 | 45 | ||||||
| P·RL-WY633 | 3/4" | 1/2" | 9 | 58 | 50 | 41 | 47 | ||||||
| P·RL-WY634 | 1" | 1/2" | 9 | 68 | 60 | 41 | 47 | ||||||
| P·RL-WY635 | 1" | 3/4" | 16 | 68 | 60 | 50 | 58 | ||||||
| P·RL-WY636 | 1-1/4" | 1" | 22 | 89 | 78 | 60 | 68 | ||||||
| P·RL-WY637 | 1-1/2" | 1-1/4" | 28 | 109 | 94 | 78 | 89 | ||||||
尺寸規格表
| PFA Flare-Type Reducing Elbow Union Fitting | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | ||||||||||||||||
| NO. | Tube O.D.T1 | Tube O.D.T2 | A | B | F1 | F2 | ØE1 | ØE2 | T1 | T2 | ||||||
| P·RL-WY638 | 3/8" | 1/4" | 33 | 40 | 22 | 15 | 8 | 4 | 9 | 6 | ||||||
| P·RL-WY639 | 3/8" | 8mm | 37 | 40 | 22 | 18 | 8 | 6 | 9 | 8 | ||||||
| P·RL-WY640 | 1/2" | 1/4" | 47 | 47 | 15 | 27 | 10 | 4 | 12 | 6 | ||||||
| P·RL-WY641 | 1/2" | 3/8" | 43 | 47 | 27 | 22 | 10 | 8 | 12 | 9 | ||||||
| P·RL-WY642 | 3/4" | 1/2" | 47 | 55 | 37 | 27 | 16 | 10 | 19 | 12 | ||||||
| P·RL-WY643 | 1" | 3/4" | 62 | 70 | 37 | 47 | 22 | 16 | 25 | 19 | ||||||
| P·RL-WY644 | 1" | 3/8" | 52 | 74 | 22 | 47 | 16 | 8 | 25 | 9 | ||||||
| P·RL-WY645 | 1-1/2" | 1" | 74 | 109 | 67 | 47 | 33 | 22 | 38 | 25 | ||||||
產品特性
- 抗化學腐蝕性佳，耐氫氟酸、硫酸、硝酸等強酸環境。
- 耐高溫，使用範圍 -18°C 至 200°C，1-1/2" 以上規格建議低於 150℃ 使用。
- 低析出、低吸附性，適用於超純水與高潔淨需求。
- 表面光滑無死角，有效減少液體殘留與污染風險。
壓力/溫度關係表
