PFA NPT外牙彎頭
Material : PFA / P·LNPT-TYPE PFA Male NPT Elbow Fitting
尺寸規格表
| inch Tube Type | ||||||||
|---|---|---|---|---|---|---|---|---|

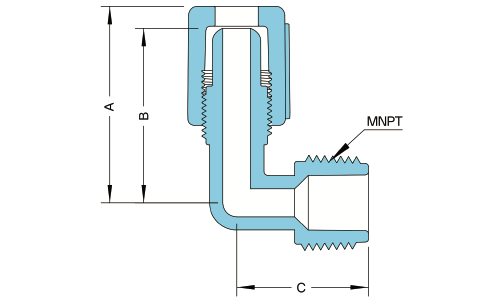

| NO. | Tube O.D. | NPT Size | Orifice | A | B | C | ||
| P·LNPT-WY0010 | 1/4" | 1/8" | 3 | 42 | 37 | 26 | ||
| P·LNPT-WY0011 | 1/4" | 1/4" | 3 | 42 | 37 | 27 | ||
| P·LNPT-WY0012 | 1/4" | 3/8" | 3 | 42 | 37 | 27 | ||
| P·LNPT-WY0013 | 1/4" | 1/2" | 3 | 42 | 37 | 32 | ||
| P·LNPT-WY0014 | 3/8" | 1/8" | 3 | 44 | 39 | 26 | ||
| P·LNPT-WY0015 | 3/8" | 1/4" | 3 | 44 | 39 | 27 | ||
| P·LNPT-WY0016 | 3/8" | 3/8" | 6 | 44 | 39 | 27 | ||
| P·LNPT-WY0017 | 3/8" | 3/8" | 6 | 44 | 39 | 30 | ||
| P·LNPT-WY0018 | 3/8" | 1/2" | 6 | 44 | 39 | 34 | ||
| P·LNPT-WY0019 | 1/2" | 1/8" | 3 | 45 | 41 | 26 | ||
| P·LNPT-WY0020 | 1/2" | 1/4" | 3 | 45 | 41 | 27 | ||
| P·LNPT-WY0021 | 1/2" | 3/8" | 6 | 45 | 41 | 27 | ||
| P·LNPT-WY0022 | 1/2" | 1/2" | 9 | 45 | 41 | 30 | ||
| P·LNPT-WY0023 | 1/2" | 3/4" | 9 | 45 | 41 | 34 | ||
| P·LNPT-WY0024 | 1/2" | 1" | 9 | 45 | 41 | 45 | ||
| P·LNPT-WY0025 | 3/4" | 3/8" | 6 | 56 | 50 | 32 | ||
| P·LNPT-WY0026 | 3/4" | 1/2" | 9 | 56 | 50 | 34 | ||
| P·LNPT-WY0027 | 3/4" | 3/4" | 16 | 56 | 50 | 35 | ||
| P·LNPT-WY0028 | 3/4" | 1" | 16 | 56 | 50 | 45 | ||
| P·LNPT-WY0029 | 1" | 1/2" | 9 | 69 | 60 | 41 | ||
| P·LNPT-WY0030 | 1" | 3/4" | 16 | 69 | 60 | 41 | ||
| P·LNPT-WY0031 | 1" | 1" | 22 | 69 | 60 | 45 | ||
產品特性
- 抗化學腐蝕性佳，耐氫氟酸、硫酸、硝酸等強酸環境。
- 耐高溫，使用範圍 -18°C 至 200°C，1-1/2" 以上規格建議低於 150℃ 使用。
- 低析出、低吸附性，適用於超純水與高潔淨需求。
- 表面光滑無死角，有效減少液體殘留與污染風險。
- 熱熔焊接設計，接合處穩定牢固，密封性佳。
