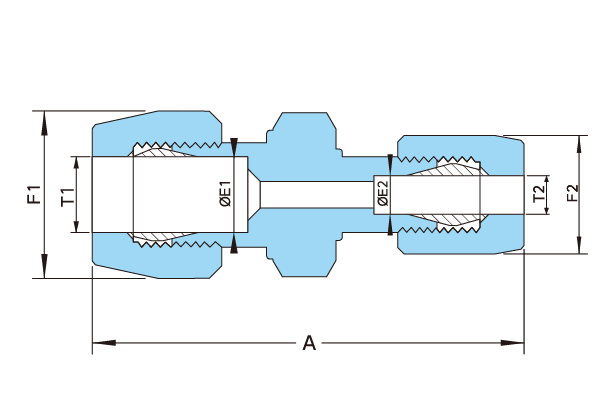

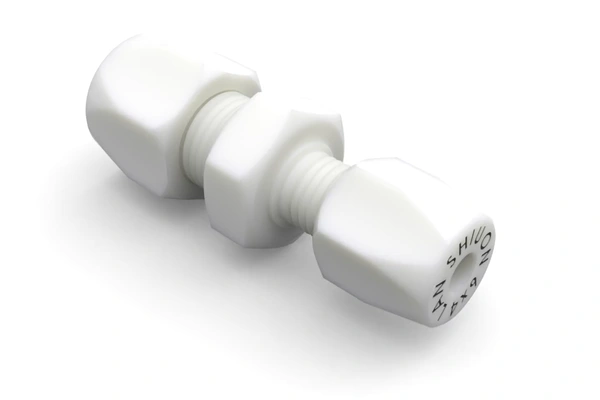

RE-TYPE REDUCING UNION
Material : TFM
| Mm Tube type |
| NO. |
T1 |
T2 |
(A) |
ØE1 |
ØE2 |
F1 |
F2 |
| RE-WY510 |
4×3 |
3×2 |
36.5 |
3.1 |
2.1 |
Ø12 |
Ø12 |
| RE-WY511 |
6×4 |
3×2 |
41.3 |
4.3 |
2.1 |
16 |
Ø12 |
| RE-WY512 |
6×4 |
4×3 |
41.2 |
4.3 |
3.1 |
16 |
Ø12 |
| RE-WY513 |
8×6 |
3×2 |
44.2 |
6.3 |
2.1 |
19 |
Ø12 |
| RE-WY514 |
8×6 |
4×3 |
44.1 |
6.3 |
3.1 |
19 |
Ø12 |
| RE-WY515 |
8×6 |
6×4 |
48.9 |
8.2 |
4.3 |
19 |
16 |
| RE-WY516 |
10×8 |
6×4 |
53.2 |
8.2 |
4.3 |
22 |
16 |
| RE-WY517 |
10×8 |
8×6 |
56.1 |
8.2 |
6.3 |
22 |
19 |
| RE-WY518 |
12×10 |
6×4 |
56.5 |
10.2 |
4.3 |
27 |
16 |
| RE-WY519 |
12×10 |
8×8 |
59.4 |
10.2 |
6.3 |
27 |
19 |
| RE-WY520 |
12×10 |
10×8 |
63.7 |
10.2 |
8.2 |
27 |
22 |
| RE-WY521 |
19×15.8 |
10×10 |
69 |
16 |
8.2 |
38 |
22 |
| RE-WY522 |
19×15.8 |
12×10 |
69 |
16 |
10.2 |
38 |
27 |
| RE-WY523 |
25×22 |
19×15.8 |
99.4 |
22.2 |
16 |
50 |
38 |
| Inch Tube type |
| NO. |
T1 |
T2 |
(A) |
ØE1 |
ØE2 |
F1 |
F2 |
| RE-WY524 |
1/4"×5/32" |
1/8"×0.086" |
41.3 |
4.3 |
2.1 |
16 |
Ø12 |
| RE-WY525 |
3/8"×1/4" |
1/4"×5/32" |
53.2 |
6.35 |
4.3 |
22 |
16 |
| RE-WY526 |
1/2"×3/8" |
3/8"×1/4" |
56.5 |
10.2 |
9.5 |
27 |
16 |
| RE-WY527 |
1/2"×3/8" |
1/4"×5/32" |
63.7 |
10.2 |
6.3 |
27 |
22 |
| RE-WY528 |
3/4"×5/8" |
3/8"×1/4" |
76.1 |
16 |
6.35 |
38 |
22 |
| RE-WY529 |
3/4"×5/8" |
1/2"×3/8" |
79.4 |
16 |
10.2 |
38 |
27 |
| RE-WY530 |
1"×7/8" |
3/4"×5/8" |
99.4 |
22.2 |
16 |
50 |
38 |
