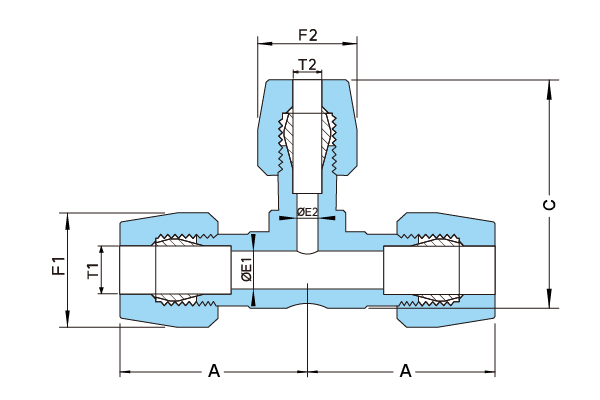

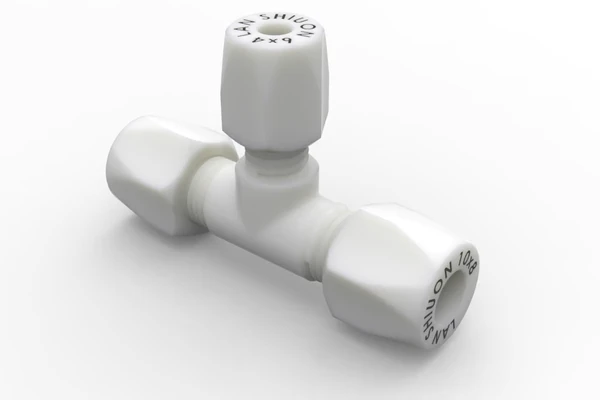

RT-TYPE REDUCING UNION TEE
Material : TFM
| Mm Tube type | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NO. | T1 | T2 | (A) | (C) | ØE1 | ØE2 | F1 | F2 | ||
| RT–WY620 | 4×3 | 3×2 | 22.7 | 22.8 | 3.1 | 2.1 | 12 | 12 | ||
| RT–WY621 | 6×4 | 4×2 4×3 3×2 |
38.2 | 32 | 4 | 2 | 16 | 12 | ||
| RT–WY622 | 8×6 | 6×4 | 38.2 | 32 | 6 | 4 | 19 | 16 | ||
| RT–WY623 | 10×8 | 6×4 | 38.2 | 32 | 8 | 4.4 | 22 | 16 | ||
| RT–WY624 | 12×10 | 10×8 | 47 | 41.2 | 10 | 8 | 27 | 22 | ||
| RT–WY625 | 19×15.8 | 12×10 | 60.4 | 52 | 16 | 10 | 38 | 27 | ||
| RT–WY626 | 25×22 | 19×15.8 | 69 | 69 | 22 | 16 | 50 | 38 | ||
| Inch Tube type | ||||||||
|---|---|---|---|---|---|---|---|---|
| NO. | T1 | T2 | (A) | (C) | ØE1 | ØE2 | F1 | F2 |
| RT–WY627 | 1/4"×5/32" | 1/8"×0.086" | 38.2 | 38.2 | 4 | 2 | 16 | 12 |
| RT–WY628 | 3/8"×1/4" | 1/4"×5/32" | 38.2 | 32 | 8 | 4.4 | 22 | 16 |
| RT–WY629 | 1/2"×3/8" | 3/8"×1/4" | 47 | 41.2 | 10 | 8 | 27 | 22 |
| RT–WY630 | 3/4"×5/8" | 1/2"×3/8" | 60.4 | 52 | 16 | 10 | 38 | 27 |
| RT–WY631 | 1"×7/8" | 3/4"×5/8" | 69 | 69 | 22 | 16 | 50 | 38 |
