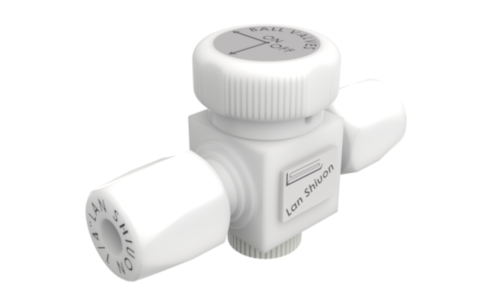

錐形閥 TAPER VALVE
TAPER VALVE
Material : TFM
| Model | |
|---|---|
| How to use | Handes |
| Action | Stem90° |
| Highest pressure | 0.4mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |
| KIMDS | PART NAME | MATERIAL | |
|---|---|---|---|
|
It's the part of
contacting of liquid. |
1 | HANDLE | POM |
| 2 | STEM | TFM | |
| 3 | BODY | TFM | |
| 4 | UNION NUT | TFM | |
| 5 | WASHER | POM | |
| 6 | NUT | POM |
| Mm Tube type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | B | ||
| 2PV-T002 | 4×2 | 57 | 46 | ||
| 2PV-T004 | 6×4 | 57 | 46 | ||
| 2PV-T006 | 8×6 | 64 | 53 | ||
| 2PV-T008 | 10×8 | 64 | 53 | ||
| 2PV-T0010 | 12×10 | 64 | 53 | ||
| 2PV-T0016 | 19×15.8 | 108 | 65 | ||
| 2PV-T0022 | 25×22 | 108 | 65 | ||
| Inch Tube type | |||
|---|---|---|---|
| NO. | OD×ID | A | B |
| 2PV-T004 | 1/8"×0.086" | 57 | 46 |
| 2PV-T006 | 1/4"×5/32" | 57 | 46 |
| 2PV-T008 | 3/8"×1/4" | 64 | 53 |
| 2PV-T0010 | 1/2"×3/8" | 64 | 53 |
| 2PV-T0016 | 3/4"×5/8" | 108 | 65 |
| 2PV-T0022 | 1"×7/8" | 108 | 65 |
