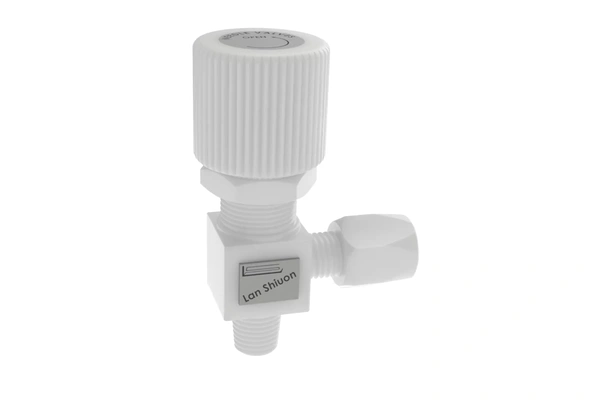

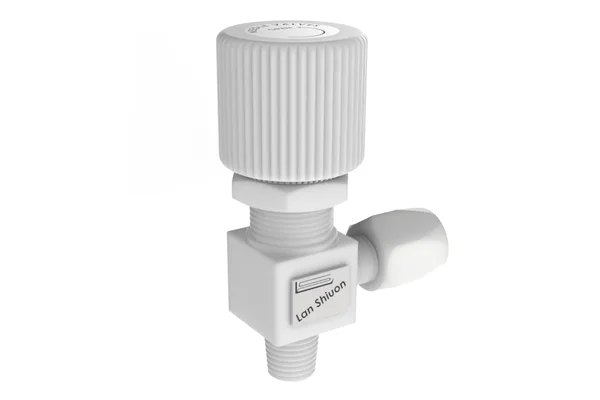

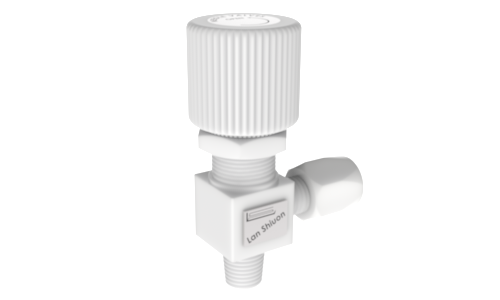

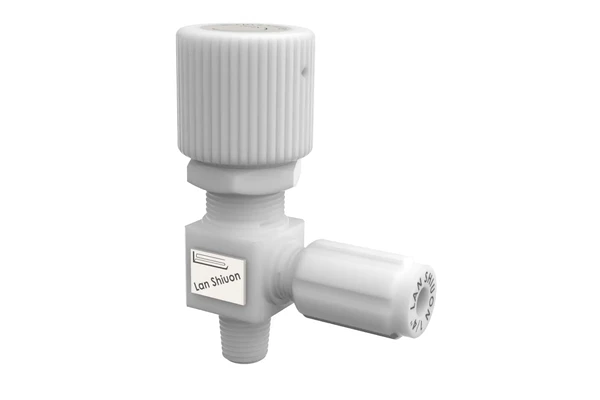

TFM 1PAL 針閥 NEEDLE VALVES
TFM 1PAL NEEDLE VALVES
Material : TFM
| KIMDS | PART NAME | MATERIAL | |
|---|---|---|---|
| It's the part of contacting of liquid. |
3 | BODY | TFM |
| 4 | NEEDLE | PVDF，PEEK，PCTFE | |
| 6 | TUBE | PTFE，TEA，FEP |

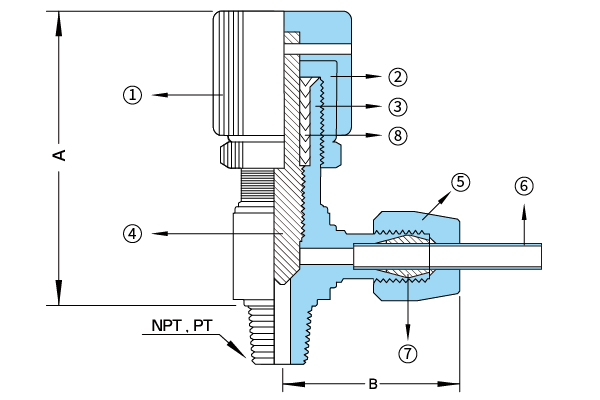

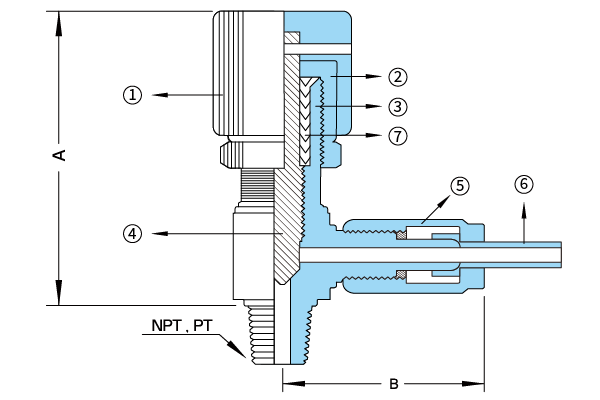

| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | HANDLE | PVDF，POM |
| 2 | GLAND | TFM |
| 3 | BODY | TFM |
| 4 | NEEDLE | PVDF，PEEK，PCTFE |
| 5 | CAP | TFM |
| 6 | TUBE | PTFE，TEA，FEP |
| 7 | PRIMAPY SEAL | PTFE |
| 8 | GLAND PACKING | PTFE |
| Mm Tube Type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | B | C |
| 1PAL-N002 | 4×2 | 65 | 28 | PT，NPT |
| 1PAL-N004 | 6×4 | 68 | 28 | PT，NPT |
| 1PAL-N006 | 8×6 | 68 | 33 | PT，NPT |
| 1PAL-N008 | 10×8 | 72 | 33 | PT，NPT |
| 1PAL-N010 | 12×10 | 72 | 33 | PT，NPT |
| 1PAL-N016 | 19×15.8 | 85 | 45 | PT，NPT |
| 1PAL-N022 | 25×22 | 105 | 65 | PT，NPT |
| Inch Tube Type | ||||
|---|---|---|---|---|
| NO. | OD×ID | A | B | C |
| 1PAL-N004 | 1/8"×0.086" | 65 | 28 | PT，NPT |
| 1PAL-N006 | 1/4"×5/32" | 68 | 28 | PT，NPT |
| 1PAL-N008 | 3/8"×1/4" | 72 | 33 | PT，NPT |
| 1PAL-N010 | 1/2"×3/8" | 72 | 33 | PT，NPT |
| 1PAL-N016 | 3/4"×5/8" | 85 | 45 | PT，NPT |
| 1PAL-N022 | 1"×7/8" | 105 | 65 | PT，NPT |
| Model | Cheek valve |
|---|---|
| How to use | Automatic |
| Action | Stem90° |
| Highest pressure | 0.7mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |
