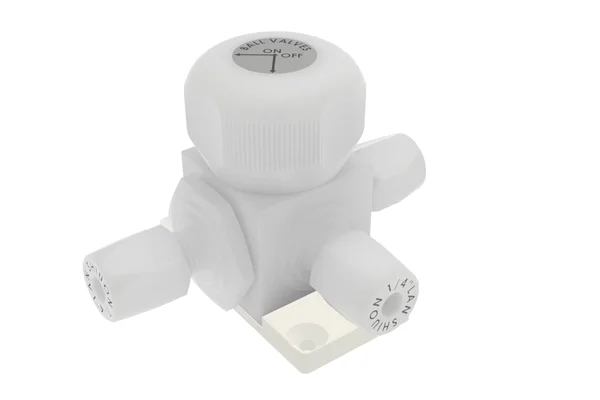

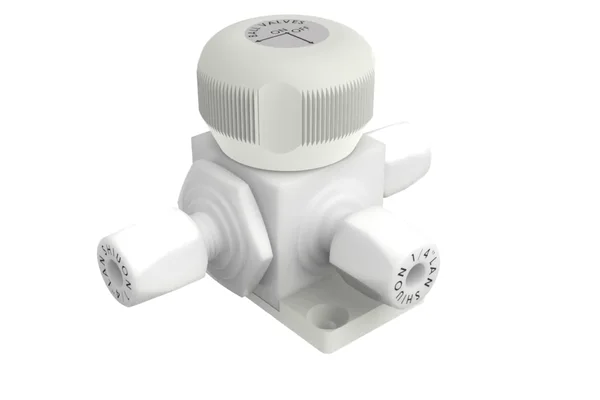

TFM-3PA BALL VALVE 功能特點，主要液體流通不殘留在 BALL VALVE 裡，且內襯 SEAT 設計可替換，管內液體流通，可承受較高壓力。
用途: 藥物劑、溶劑、純水輸送、半導體連接、各種化學工業液體
| Model |
Change Ball valve |
| How to use |
Hand |
| Action |
Stem90° |
| Highest pressure |
0.7mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| constant temperature |
60°C |

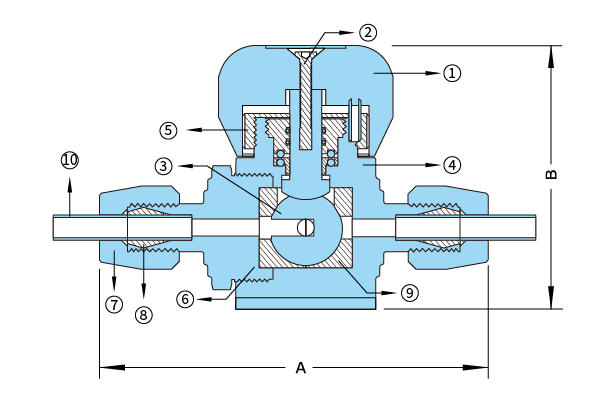

| ITEM |
PART NAME |
MATERIAL |
| 1 |
HANDLE |
PVDF，POM |
| 2 |
STEM |
PEEK，PCTFE，PVDF |
| 3 |
BALL |
PEEK，PCTFE，PVDF |
| 4 |
BODY |
TFM |
| 5 |
GLAND |
TFM |
| 6 |
CAP |
TFM |
| 7 |
UNION NUT |
TFM |
| 8 |
PRIMARY SEAL |
PTFE |
| 9 |
SEAT |
PTFE |
| 10 |
TUBE |
PFA，PTFE，FEP |
| |
KIMDS |
PART NAME |
MATERIAL |
|
It's the part of
contacting of liquid. |
1 |
BODY |
TFM |
| 2 |
CAP |
TFM |
| 5 |
STEM |
PEEK，PCTFE |
| 6 |
BALL |
PEEK，PCTFE |
| 9 |
SEAT |
PTFE |
| 10 |
TUBE |
PFA，PTFE，FEP |
| Mm Tube type |
| NO. |
OD×ID |
A |
B |
| 3PA-N002 |
3×2 |
4×2 |
4×3 |
65 |
38 |
| 3PA-N004 |
6×4 |
70 |
38 |
| 3PA-N006 |
8×6 |
70 |
38 |
| 3PA-N008 |
10×8 |
85 |
58 |
| 3PA-N0010 |
12×10 |
85 |
58 |
| 3PA-N0016 |
19×15.8 |
115 |
73 |
| 3PA-N0022 |
25×22 |
125 |
80 |
| Inch Tube type |
| NO. |
OD×ID |
A |
B |
| 3PA-I002 |
1/8"×0.086" |
65 |
38 |
| 3PA-I004 |
1/4"×5/32" |
70 |
38 |
| 3PA-I006 |
3/8"×1/4" |
85 |
58 |
| 3PA-I008 |
1/2"×3/8" |
85 |
58 |
| 3PA-I0010 |
3/4"×5/8" |
115 |
73 |
| 3PA-I0016 |
1"×7/8" |
125 |
80 |
