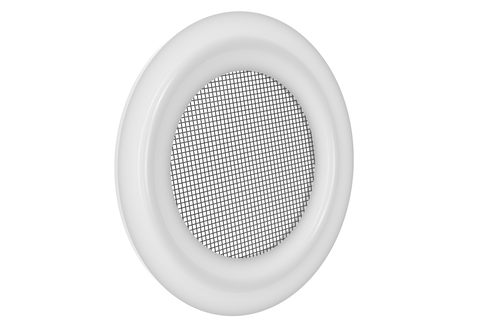

ASH-TYPE 夾式接頭墊片
Material : TFM+SUS304 or SUS316
Material : 100% PTFE / TFM+SUS304 or SUS316
過濾片: SUS304 or SUS316

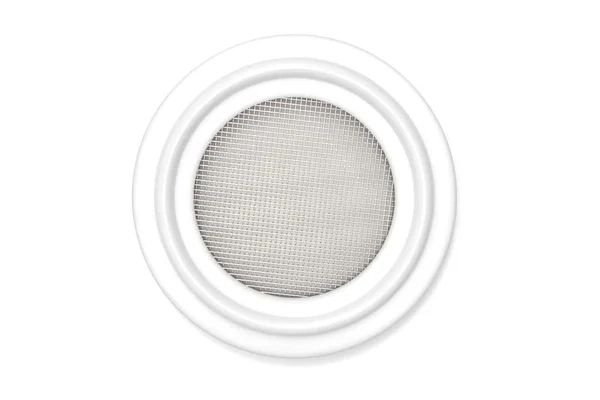

- Circular Holes (圓孔) : 0.2 / 0.5 / 0.8 mm

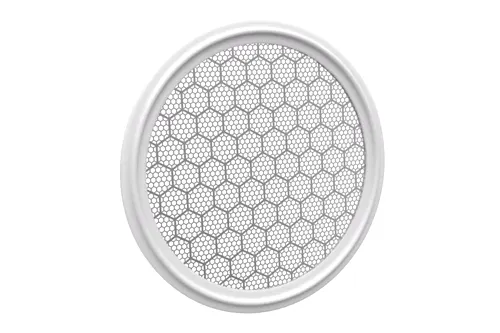

- Hexagonal (六角孔) : 1.0 / 1.5 / 2.0 mm

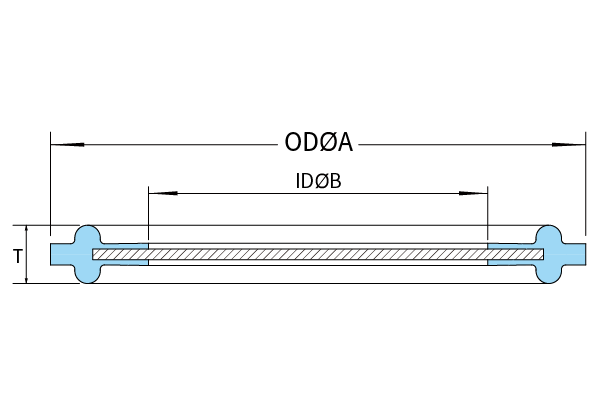

| DN | OD | ID | T+0.3 |
|---|---|---|---|
| 10 | 34 | 10 | 5.5 |
| 15 | 34 | 16 | 5.5 |
| 20 | 34 | 20 | 5.5 |
| 25 | 50.5 | 26 | 5.5 |
| 32 | 50.5 | 32 | 5.5 |
| 40 | 50.5 | 38 | 5.5 |
| 50 | 64 | 50 | 5.5 |
| 65 | 91 | 66 | 5.5 |
| 80 | 106 | 81 | 5.5 |
| 100 | 119 | 100 | 5.5 |
