PFA NPT內牙直通頭
Material : PFA / P·DFNPT-TYPE PFA Female NPT Straight Fitting

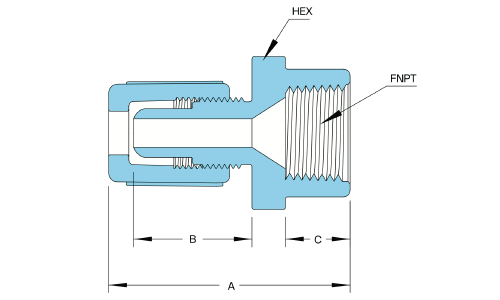

尺寸規格表
| inch Tube Type | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | NPT Size | Orifice | A | B | C | HEX | ||
| P·DFNPT-WY0010 | 1/4" | 1/4" | 3 | 50 | 24 | 14 | 19 | ||
| P·DFNPT-WY0011 | 1/4" | 3/8" | 3 | 53 | 24 | 16 | 23 | ||
| P·DFNPT-WY0012 | 1/4" | 1/2" | 3 | 52 | 24 | 14 | 30 | ||
| P·DFNPT-WY0013 | 3/8" | 1/4" | 3 | 52 | 26 | 14 | 19 | ||
| P·DFNPT-WY0014 | 3/8" | 3/8" | 6 | 56 | 26 | 16 | 23 | ||
| P·DFNPT-WY0015 | 3/8" | 1/2" | 6 | 54 | 26 | 14 | 30 | ||
| P·DFNPT-WY0016 | 1/2" | 1/4" | 3 | 56 | 29 | 14 | 19 | ||
| P·DFNPT-WY0017 | 1/2" | 3/8" | 6 | 58 | 29 | 16 | 23 | ||
| P·DFNPT-WY0018 | 1/2" | 1/2" | 9 | 56 | 28 | 14 | 30 | ||
| P·DFNPT-WY0019 | 1/2" | 3/4" | 9 | 58 | 29 | 16 | 35 | ||
| P·DFNPT-WY0020 | 3/4" | 1/4" | 3 | 63 | 32 | 16 | 30 | ||
| P·DFNPT-WY0021 | 3/4" | 3/8" | 6 | 63 | 33 | 16 | 30 | ||
| P·DFNPT-WY0022 | 3/4" | 1/2" | 9 | 60 | 32 | 14 | 34 | ||
| P·DFNPT-WY0023 | 3/4" | 3/4" | 16 | 62 | 32 | 16 | 35 | ||
產品特性
- 抗化學腐蝕性佳，耐氫氟酸、硫酸、硝酸等強酸環境。
- 耐高溫，使用範圍 -18°C 至 200°C，1-1/2" 以上規格建議低於 150℃ 使用。
- 低析出、低吸附性，適用於超純水與高潔淨需求。
- 表面光滑無死角，有效減少液體殘留與污染風險。
壓力/溫度關係表
