PFA RC外牙直通頭
Material : PFA / P·DNPT-TYPE PFA Male RC Straight Fitting

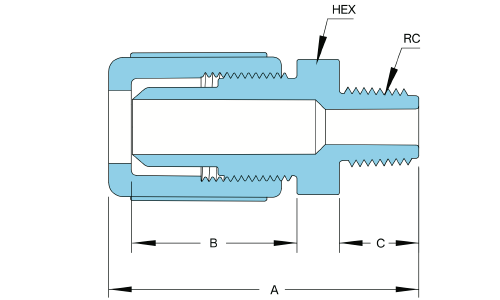

尺寸規格表
| inch Tube Type | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | RC Size | Orifice | A | B | C | HEX | ||
| P·DRC-WY0010 | 1/4" | 1/8" | 3 | 47 | 24 | 9 | 15 | ||
| P·DRC-WY0011 | 1/4" | 1/4" | 3 | 50 | 24 | 14 | 15 | ||
| P·DRC-WY0012 | 1/4" | 3/8" | 3 | 51 | 24 | 14 | 17 | ||
| P·DRC-WY0013 | 1/4" | 1/2" | 3 | 53 | 24 | 16 | 23 | ||
| P·DRC-WY0014 | 3/8" | 1/4" | 6 | 53 | 26 | 14 | 20 | ||
| P·DRC-WY0015 | 3/8" | 3/8" | 6 | 53 | 26 | 14 | 20 | ||
| P·DRC-WY0016 | 3/8" | 1/2" | 6 | 56 | 26 | 17 | 23 | ||
| P·DRC-WY0017 | 1/2" | 1/8" | 3 | 54 | 29 | 13 | 23 | ||
| P·DRC-WY0018 | 1/2" | 1/4" | 3 | 55 | 29 | 14 | 23 | ||
| P·DRC-WY0019 | 1/2" | 3/8" | 6 | 56 | 29 | 14 | 23 | ||
| P·DRC-WY0020 | 1/2" | 1/2" | 9 | 58 | 29 | 17 | 23 | ||
| P·DRC-WY0021 | 1/2" | 3/4" | 9 | 59 | 29 | 17 | 30 | ||
| P·DRC-WY0022 | 3/4" | 3/8" | 6 | 60 | 32 | 14 | 30 | ||
| P·DRC-WY0023 | 3/4" | 1/2" | 9 | 63 | 32 | 17 | 30 | ||
| P·DRC-WY0024 | 3/4" | 3/4" | 16 | 63 | 32 | 17 | 30 | ||
| P·DRC-WY0025 | 3/4" | 1" | 16 | 67 | 32 | 21 | 36 | ||
| P·DRC-WY0026 | 1" | 1/2" | 9 | 70 | 37 | 17 | 38 | ||
| P·DRC-WY0027 | 1" | 3/4"" | 16 | 68 | 37 | 17 | 38 | ||
| P·DRC-WY0028 | 1" | 1" | 22 | 75 | 37 | 22 | 38 | ||
產品特性
- 抗化學腐蝕性佳，耐氫氟酸、硫酸、硝酸等強酸環境。
- 耐高溫，使用範圍 -18°C 至 200°C，1-1/2" 以上規格建議低於 150℃ 使用。
- 低析出、低吸附性，適用於超純水與高潔淨需求。
- 表面光滑無死角，有效減少液體殘留與污染風險。

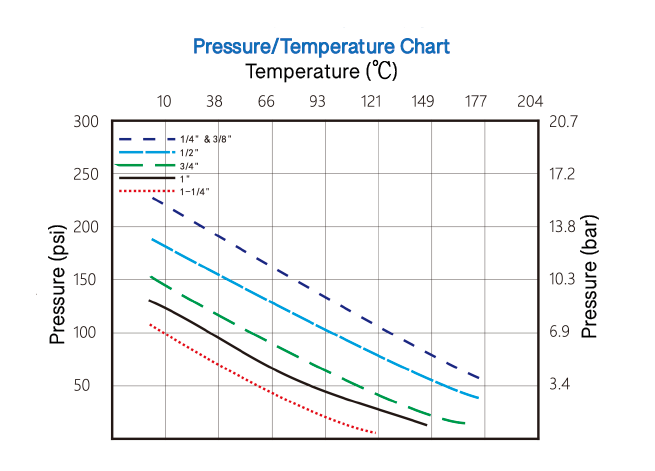

壓力/溫度關係表
