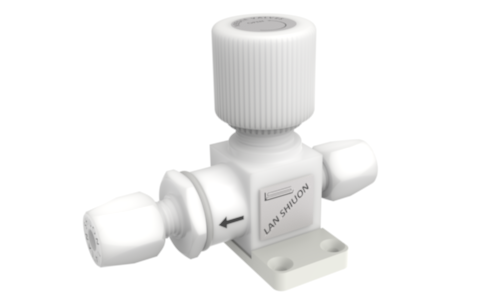

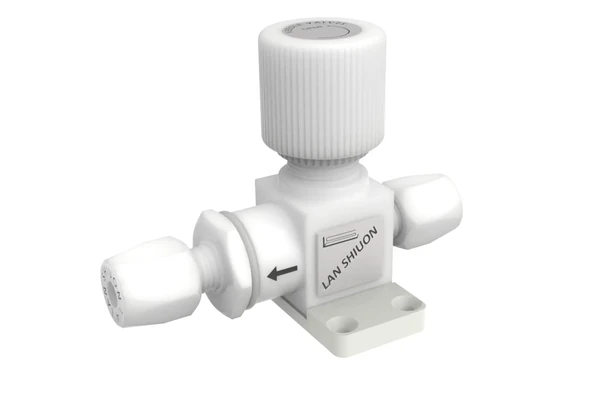

PTFE 可調式逆止針閥
ADJUSTABLE NEEDLE CHECK VALVE
Material : TFM
| KIMDS | PART NAME | MATERIAL | |
|---|---|---|---|
| It's the part of contacting of liquid. |
3 | BODY | TFM |
| 4 | NEEDLE | TFM | |
| 6 | TUBE | PTFE，PFA，FEP |
| Model | Cheek valve |
|---|---|
| How to use | Automatic |
| Action | Stem90° |
| Highest pressure | 0.4mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |

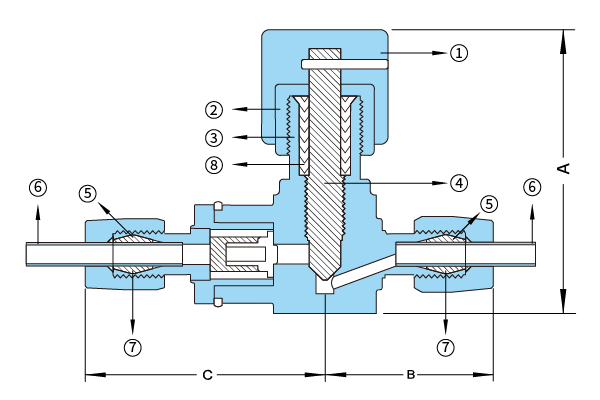

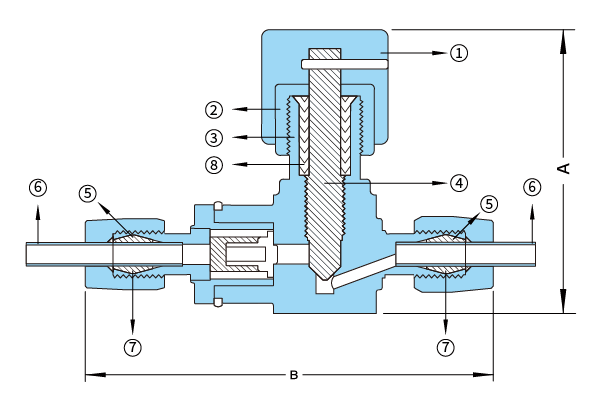

| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | HANDLE | UPE |
| 2 | GLAND | TFM |
| 3 | BODY | TFM |
| 4 | NEEDLE | TFM |
| 5 | CAP | TFM |
| 6 | TUBE | PTFE，PFA，FEP |
| 7 | PRIMAPY SEAL | PTFE |
| 8 | GLAND PACKING | PTFE |
| Mm Tube Type | |||
|---|---|---|---|
| NO. | OD×ID | A | B+C |
| 6x4 | 75.3 | 102.8 | |
| 8x6 | 75.3 | ||
| 10x8 | 75.3 | ||
| 12x10 | 75.3 | ||
| Inch Tube Type | |||
|---|---|---|---|
| NO. | OD×ID | A | B+C |
| 1/4"×5/32" | 75.3 | 102.8 | |
| 3/8"×1/4" | 75.3 | 100.8 | |
| 1/2"×3/8" | 75.3 | ||
